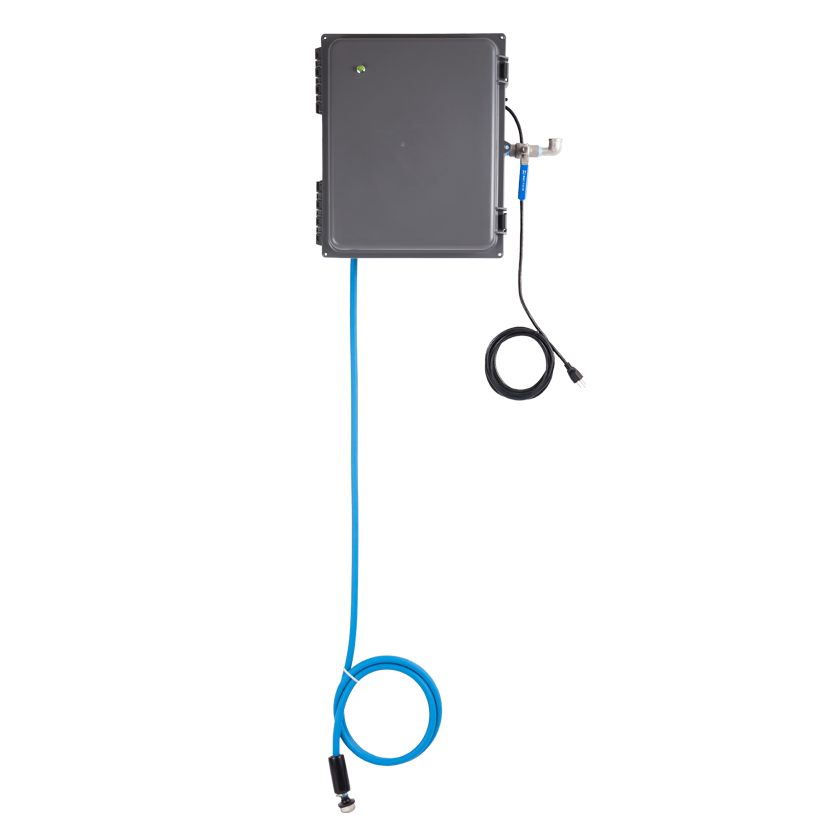

Fog Master

Description

Commercial & Industrial Wall Mounted Fog System.

FEATURES

• • Powered by compressed air and electricity
  • Draws from pre-mixed solution
  • Quick-change pump
  • Single shot timer with delay on make
  • With nozzle assemblies: 15 micron size Polypropylene and Kynar nozzle construction Up to 20 nozzles per control box
  • With FG-MA-26SS nozzle assemblies: 35 micron size Celcon, stainless steel, EPDM, and nylon nozzle construction Up to 12 nozzles per control box

WHAT'S IN THE BOX?

• Item number FOG-MA6 includes: Complete control box, clear tubing (200 ft. (60.9m) of 3/8 in. (9.5 mm) outside diameter tubing), mounting hardware, and user manual

Sold Seperately:

• Item number FG-MA-N130 includes: Complete nozzle assembly, mounting hardware, and user manual
• Item number FG-MA-26SS includes: Complete nozzle assembly, mounting hardware, and user manual

OPTIONS

Control Box: PUMP SEAL MATERIAL

1. FOG-MA6 Santoprene (standard)
2. Viton (V)
3. Kalrez (K)

Add bold option codes to item number as shown. For standard options, no option code is needed. Examples:

• FOG-MA6 (standard unit with Santoprene pump seals)
• FOG-MA6V (unit with Viton pump seals)

Nozzle Assemblies (sold separately):

• FG-MA-N130
• FG-MA-26SS

Ordering Example: For a system with one control box with Santoprene pump seals and eight FG-MA-26SS nozzles, the order would be as follows: QUANTITY ITEM NUMBER 1 FOG-MA6 8 FG-MA-26SS
